MV-SC3016C, 1.6 MP

Vision Sensor

HIKROBOT

  • Adopts embedded hardware platform for highspeed image processing.
  • Adopts built-in positioning and measurement algorithms to detect object’s existence, quantity, location, etc.
  • Multiple IO interfaces for input and output signals.
  • Multiple indicators for displaying device status.
  • Adopts light source to ensure uniform brightness in the illuminated area.
  • Supports multiple communication protocols, including Serial Port, TCP, UDP, FTP, Profinet, Modbus, etc.

Details

With built-in positioning and measurement algorithms, MVSC3016C vision sensor can detect object’s existence, quantity, location, etc. It can be monitored and operated via the SCMVS client. It can output results via RS-232 and Ethernet, and cooperate with other processes via IO. The vision sensor supports multiple result output methods and customized result text output.

Specifications

Series
SC3000
Resolution
1.6 MP
Existence Tools
Pattern Existence
Spot Existence
Edge Existence
Circle Existence
Line Existence
Counting Tools
Pattern Count
Spot Count
Edge Count
Measurement Tools
Contrast Measurement
Greyscale Size
Diameter Measurement
Width Measurement
Line Angle
Line to Line Angle
Point to Line
Color Size
Edge Width Measurement
Brightness Average Value

Models

MV-SC3016C-06M-WBN
6 mm focal length
MV-SC3016C-12M-WBN
12.4 mm focal length
MV-SC3016C-15M-WBN
14.8 mm focal length

Accessories

Lens Cap
Transparent lens cap

Related

MV-SC3004C

With built-in positioning and measurement algorithms, the MV-SC3004C vision sensor can detect object’s existence, quantity, location, etc.

MV-SC3004M

With built-in positioning and measurement algorithms, MV-SC3004M vision sensor can detect object’s existence, quantity, location, etc.

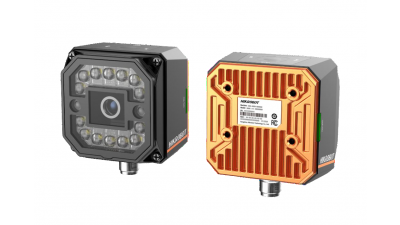

MV-SC3016M
