With built-in positioning and measurement algorithms, the MV-SC2016EC vision sensor can detect object’s existence, count patterns and spots, etc. It can be monitored and operated via the SCMVS client. It can output results via RS-232 and Ethernet, and cooperate with other processes via IO. The vision sensor supports multiple result output methods and customized result text output.
MV-SC2016EC, 1.6 MP
Vision Sensor
HIKROBOT
- Adopts embedded hardware platform for high-speed image processing.
- Adopts built-in positioning and measurement algorithms to detect object’s existence, count patterns and spots, etc.
- Multiple IO interfaces for input and output signals.
- Multiple indicators for displaying device status.
- Adopts light source to ensure uniform brightness in the illuminated area.
- Supports multiple communication protocols, including Serial Port, TCP, UDP, FTP, Profinet, Modbus, Ethernet/IP, etc.
Details
Specifications
Series
SC2000
Resolution
1.6 MP
Existence Tools
Pattern Existence
Spot Existence
Spot Existence
Counting Tools
Pattern Count
Spot Count
Spot Count
Measurement Tools
Contrast Measurement
Color Size
Brightness Average Value
Color Size
Brightness Average Value
Models
MV-SC2016EC-08S-WBN
8 mm focal length
MV-SC2016EC-12S-WBN
12.4 mm focal length
MV-SC2016EC-15S-WBN
14.8 mm focal length
Accessories
Lens Cap
Transparent lens cap
Related
With built-in positioning and measurement algorithms, the MV-SC2004EC vision sensor can detect object’s existence, count patterns and spots, etc.
With built-in positioning and measurement algorithms, the MV-SC2004EM vision sensor can detect object’s existence, count patterns and spots, etc.

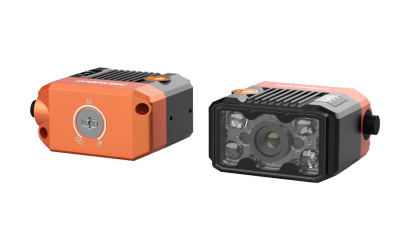

With built-in positioning and measurement algorithms, the MV-SC2004EM-06S-WBN-Mini vision sensor can detect object’s existence, count patterns and spots, etc.

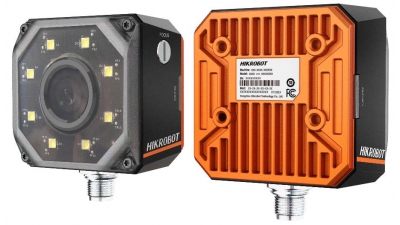

With built-in positioning and measurement algorithm, the MVSC2004M vision sensor can detect an object’s presence, position, dimension, etc.
