MTP - Multi Channel Telemetry System

Wireless Data Acquisition

Static & Dynamic measurements up to 24,000 Hz
2 to 64 channel systems
Inputs for Strain Gauges, Temperature, ICP sensors or Voltages
4 Vdc Excitation & Gains selectable, 125, 250, 500, 1000 or 2000
16 bit ADC, simultaneous sampling
Full software programmable & Auto Zero calibration
Inductive or battery powered

Details

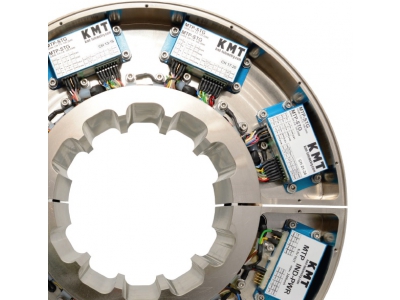

: The MTP telemetry is a small and flexible telemetry system for rotating applications. Each sensor module (2-channel) is equipped with signal conditioning, anti-aliasing filters, analog-to-digital converters and a digital output.

These modules (up to 32 through 64 chns) are controlled by an MTP-Controller module. The acquisition modules are mounted close to the sensors or strain gauges, reducing noise in the signals, and transmit the measurement using a PCM bit stream to the MTP-Controller. The MTP-Controller support a transmitter module for distances of up to 0.1m with inductive telemetry transmission or up to 10m with radio telemetry transmission.

Specifications

Input Types

Strain Gauge
Vdc
Temperature

No. of Inputs

8 +
2-20

Output

Analog

Models

MTP

Multi Channel Telemetry System

MTP -BNC16

BNC Box

MTP -BNC32

BNC Box

MTP-CONTROL

Controller 1- 32 acquisition modules Output: PCM

MTP-DEC16

Receiver unit for max16 Channels

MTP-DEC24

Receiver unit for max 24 Channels

MTP-DEC32

Receiver unit for max 32 Channels

MTP-DEC8

Receiver unit for max 8 Channels

MTP-ICP

Acquisition module for 2 ICP sensors

MTP-Pt100/1000

Acquisition module for 2 RTD sensors Range -100 to 600°C, -50 to 300°C

MTP-STG

Acquisition module for 2 strain gages Full, half and quarter bridge

MTP-TH-K

Acquisition module for 2x TH-K Inputs galvanic isolated Range -50 to 1000°C, -50 to 500°C

MTP-VOLT

Acquisition Module For 2x high Level Inputs
