General purpose shear-type accelerometer
KS56
High Temperature Accelerometers
MMF
- Low sensitivity to temperature transients
- Low influence of base bending effects
- charge mode does not need external power
- Wide dynamic range and high resonant frequency
- Durable stainless steel housing
- High resonant frequency
- M5 mounting thread in base
Details
Specifications
Type
Charge Mode
# of Axis
1
Full Scale
3000 g
Output
20 pC/g
Material
Stainless Steel
Models
KS56
KS57
Accessories
001
Hand-held probe M5 (male) For rotation speed and angle measurement
006
Insulating flange 2 x M5 (male)
008
Rare-earth magnetic base, M5 (male)
009-UNF-BNC-1,5
Low-noise cable UNF 10-32 / BNC; 1,5 m
009-UNF-UNF-1,5
Low noise cable UNF 10-32 / UNF 10-32; 1,5 m
010-UNF-BNC-10
Low-noise cable UNF 10-32 / BNC; 10 m
010-UNF-BNC-5
low noise, UNF 10-32 to BNC, 5 m, Ø 2,7 mm, 120 °C
016
Coupler 2 x UNF 10-32
017
Adapter UNF 10-32 (fem.) to BNC (male)
025
Adapter UNF 10-32 to TNC
029
Adhesive pad, insulating, M5 (male)
030
Triaxial mounting cube 3 x M5
046
Stud adapter M5 (male) / 1/4″-28 (male)
117
Adapter UNF 10-32 to BNC
IEPE100
Remote Charge Converter
M72A1
Charge Amplifier / IEPE Amplifier
Model 003
Threaded Mounting Stud, M5
Model 045
Threaded Adapter, M5 to 10-32
Model 801
Quad BNC(4) to Screw Terminals termination box, IP65
Related
PC based modular system for typical applications of vibration measurements. Versatile and economical. USB powered modules, with plug & play functionality.
PC based modular system for High Speed & High Resolution Vibration Measurements. USB powered module with plug & play functionality. Sample rates up to 96kHz / chn.

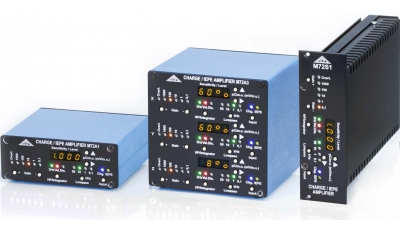

Single and 3 channel Signal Conditioning for Piezoelectric transducers with charge or IEPE outputs, that provide Amplification, filtering & integration in Desktop or Rack modules.
