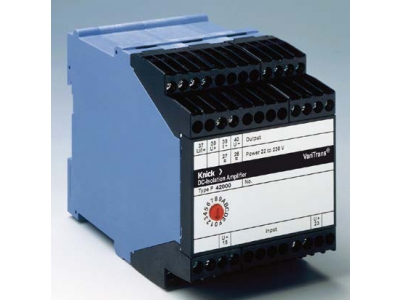

Knick P42000

Compact High Voltage DC Transducers (up to 3600 V measurement/ isolation)

Knick Interface

  • unipolar or bipolar voltage signals
  • Selectable Calibrated ranges from 100 V up to 3600 V
  • Fixed Input Ranges are available
  • Galvanically isolated up to 3.6 kVAC/DC
  • Test Voltage of 15 kVAC
  • Suitable for DC railway systems and operation on ships and land crafts
  • Selectable Signal Outputs ±20 mA, ±10 V or 4 ... 20 mA.

Details

The Knick ProLine P 42000 are available for input voltages from ±100 V to ±3600 V.  Universal power supply of 20V to 253 VAC/DC. Unipolar and bipolar (stan­dard) signals are available at the out­put: ±20 mA, ±10 V and 4 … 20 mA. 16 input/output signal combinations can be selected with a rotary switch on the front of the device.

 Vacuum encapsulation provides max­imum protection against aggressive environmental influences, shock and vibrations and ensures that the high disruptive strength required for work­ing voltages up to 3600 V AC/DC is maintained over the long term.

Models

VariTrans P 42000
Universal high voltage transducer.
VariTrans P 42000 D2
Universal high voltage transducer.
VariTrans P 42000 D2-nnnn
VariTrans P 42000 1-16 Ranges adjusted to customer requirements
VariTrans P 42000 D3
Universal high voltage transducer.
VariTrans P 42000 D3-nnnn
VariTrans P 42000 1-16 Ranges adjusted to customer requirements
VariTrans P 42001 D3
Universal high voltage transducer.
VariTrans P 42100 D3-nnnn
VariTrans P 42000 Fixed Setting, to customer requirements
