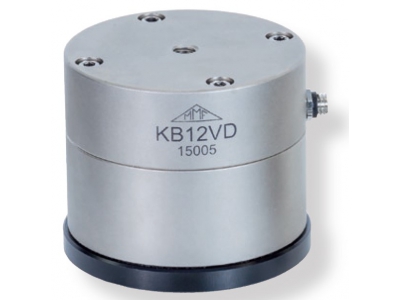

Ultra High Sensitivity Accelerometer
KB12VD
Ultra High Sensitivity Accelerometers
MMF
- Extremely sensitive piezo system provides high resolution & low noise
- High sensitivity-to-mass ratio, excellent for low frequencies
- Full Range is +/-0.6g with a 200g over-range protection
- IEPE voltage output
- Operating Temperature: -20 to 120 degC.
Details
Specifications
Type
Voltage Mode (IEPE)
# of Axis
1
Full Scale
5 g
Output
1000 mV/g
Material
Stainless Steel
Models
KB12VD
Accessories
003
Stud bolt M5 x 8
008
Rare-earth magnetic base, M5 (male)

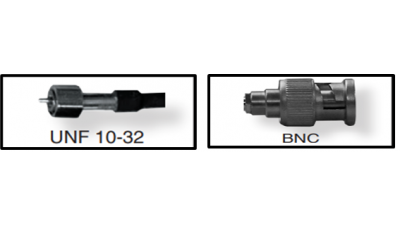

009-UNF-BNC-1,5
Low-noise cable UNF 10-32 / BNC; 1,5 m
009-UNF-UNF-1,5
Low noise cable UNF 10-32 / UNF 10-32; 1,5 m
010-UNF-BNC-10
Low-noise cable UNF 10-32 / BNC; 10 m
017
Adapter UNF 10-32 (fem.) to BNC (male)
045
Stud adapter M5 (male) / UNF 10-32 (male)
046
Stud adapter M5 (male) / 1/4″-28 (male)
330
Triaxial mounting cube 3 x M10
729
Tripod floor plate for accelerometers
M208A
8-channel IEPE conditioner
M33
IEPE amplifier module
M72A1
Charge Amplifier / IEPE Amplifier
