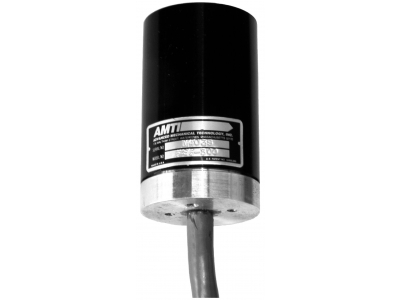

The FS6 is a versatile force transducer, offering accurate measurement of forces and moments in one of our most compact sensor designs. The body of the load cell is manufactured from a high-strength aluminum alloy with a durable anodized finish. Both its top and bottom surfaces are equipped with threaded holes for mounting.
FS6-100
Force Transducer
Advanced Mechanical Technology Inc. (AMTI)
- Strain guage bridge
- Accuracy: ±0.2% F.S.
- Anodized aluminium alloy
- Top & bottom threaded holes for mounting
Details
Specifications
Channels
6 (Fx, Fy, Fz, Mx, My, Mz)
Full Scale (Fz)
100 lbs
250 lbs
500 lbs
250 lbs
500 lbs
Non-Linearity
± 0.2 % FS
Dimensions
64 x 38 mm
Body Material
Aluminum
Models
FS6-100
Fz Range: 100 lbs
FS6-250
Fz Range: 250 lbs
FS6-500
Fz Range: 500 lbs
