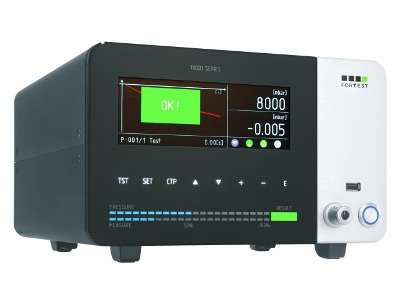

The T8060 from ForTest is the new video controller “ForTest MMI” which brings a superior level of human-machine interaction, thanks to an innovative capacitive panel in tempered glass, around a splendid 6.2” colour display.
Parameter programming is faster thanks to the new numerical keyboard integrated in the menu, and the big display makes the view of the test cycle much clearer.
The main screen also enables interaction with shortcut functions, such as test program change, "smart" test archive menu, and locking/unlocking using a password.
Limitless connectivity.
The new T8060 equipment includes ports for the USB slave, RS232, RS485, Profinet , EtherNet IP. Assembly may also include an optional Ethernet port and a 26-pole connector with 4 inputs and 8 outputs, which are completely programmable, for interfacing with the external valves, safety barriers, switches, etc...
The front panel has a master USB port for connection to a USB key to save the tests conducted, backup/restore parameters and upgrade tool firmware.
The connection to thermal printers, barcode/data-matrix readers and markers takes place automatically using an internal menu.
Always better measurements.
By nature, differential technology enables a measurement sensitivity even better than absolute decay, guaranteeing a decay resolution of 0.1 Pa up to 6 bar testing.
The implementation of new pressure sensors combined with the measurement section with centering technology in windows, and double Faraday optical-isolated cage made further improvement of the tool performance.
Optimized pneumatic section.
Assembly of the latest generation solenoid valves has enabled a 50% increase in the filling speed compared to the previous model, maintaining reliability unaltered over time.
Our tools do not require expensive maintenance in the pneumatic department. Actually, our objective is to make them increasingly reliable and long-lasting.
Innovative design.
What appears to be a simple design exercise, in fact hides an in-depth study to make use and understanding of the equipment as simple as possible.
The front panel is made of a single sheet of tempered glass and aluminium, which makes it extremely easy to clean, making the T8060 suitable for use in the laboratory and on the production line.
The extensive internal menus are easy to understand and the graphic interface was designed only to display important information.
Everything is exactly where it should be.
