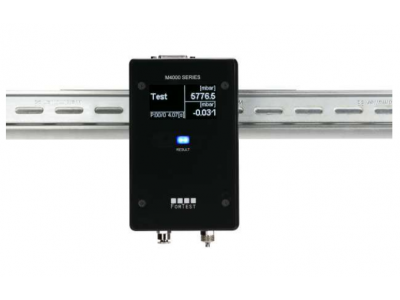

The ForTest T4960, is the new and revolutionary absolute pressure decay leak tester by ForTest.
It finds its ideal applications on pieces with a little volume and that can admit very low leakages and very high speed test with standard valves, is ideal for testing volumes up to 0.45 liters.
For a volume of 3 cc testing time is that of only 0,2", with a visible leakage rate of 10 cc/h.
The T4960 provides an innovative 2.5" high resolution Oled display and multiple connection options. The black anodized aluminum display case is specially designed for easy installation in order to minimize the volume under test.
It has optimized pneumatics, ultra fast internal valves and small testing connectors. Testing time is extremely reduced, while providing a repeatable and reliable measure. It's low maintenance, stable and noise free.
The T4960 has been designed to replace “do it yourself” testing stations. Composed of pressure transducers, pneumatic groups and PLCs, allowing ability to “plug and play” without programming and installation costs. Just a few minutes after assembling you will be fully operational.
Technical Specifications
- Dimensions 90 x 150 x 170 mm
- Weight 450gr Electrical Supply 24VDC
- Air tube size: 4x2.7, 6x4
