FlightDAQ-TL

Pressure & Temperature DAQ

Chell Instruments

  • Inputs – 16 chns for Wet Pressures (5/10Vdc) with Temperature Sensing (5/10Vdc, TC or RTD)
  • Resolution: 24 bit A/D
  • Measurement frequency: 250Hz per channel
  • Excitation: 5, 10 or 24 Vdc, Configurable
  • Operating Temperature: -20 to +90 degC.
  • Operating Power Input: 24 – 50 Vdc or PoE (Power of Ethernet )

Specifications

Type
Scanner
# of Channels
16
Precision
±0.01 % FS
Excitation
5 V DC
10 V DC
24 V DC
Min Temperature
-20 °C

Models

9022
Alternative Wet Pressure Sensor Scanner
9046
Alternative Temperature Sensor Scanner
FlightDAQ-TL-Data Display
Comparison_FlightDaq-TL_&_9022_ATI

Related

PGP9407

The PGP9407 has been designed to offer pressure & temperature measurements using the latest digital compensation techniques, providing high performance data over the compensated temperature range.

PGP227

The PGP227 series is designed for high accuracy pressure measurements, from 15psi up to 10,000psi. The advanced piezo-resistive sensor & temperature compensation techniques, provides high performance measurements.

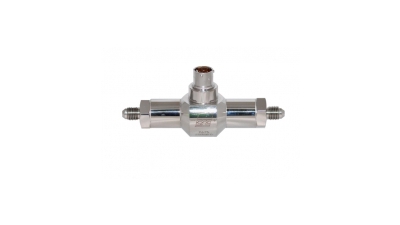

PDM221
