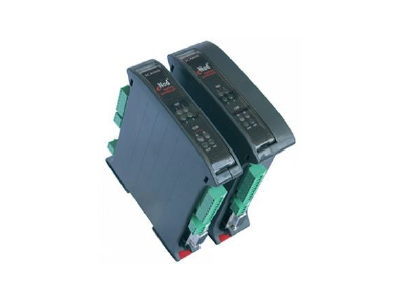

The eNod4-T provides physical or theoretical weighing calibration, 4 set point management. In the simplest of applications, this Strain Gauge Input device cab provide a fast mill Volt to Ethernet IP or ProfiNet conversion, with high resolution and high accuracy.
It offers high resolution, fast response and flexible communication.
4 Digital filtering levels allowing to always reach a quick and stable measurement in noisy environments
Filter types: A/D converter low pass filter; Low pass filter with adjustable order and cut-off frequency; Notch filter with adjustable frequency band; Self-adaptive filter designed for static weighing
Specifications:
- Capacity: 1 channel
- Layout: Din rail
- Accuracy Class: 0.005%
- Internal Resolution: 24 bits
- Formatted resolution: +/- 500,000 PTS
- High speed measurement 1600 meas./sec
Interface
- RS485, USB, CANbus
- 2 I/4 O
- 4I/4I, 1 Analog output 0-10V; 4-20ma (optional)
Similar Products: eNod4-C,eNod4-D,eNod4-B, eNod4-F
