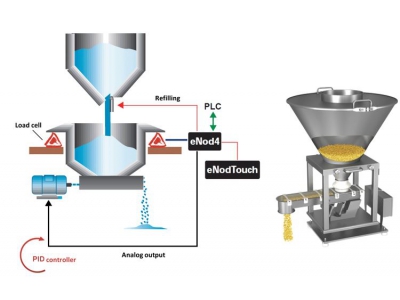

The eNod4-F automatically controls feed and refill operation using PID controller.
It offers high resolution, fast response and flexible communication
Specification
- Capacity: 1 channel
- Layout: Din rail
- Accuracy Class: 0.005%
- Internal Resolution: 24 bits
- Formatted resolution: +/- 500,000 PTS
- High speed measurement 1600 meas./sec
Interface
- RS485, USB, CANbus
- 2 I/4 O
- 4I/4I, 1 Analog output 0-10V; 4-20ma (optional)
Loss-in-weight feeder functions:
- Management of target flow and target total
- Flow regulation by PID controller
- Function of automatic adjustment of PID parameters by self-learning
- Automatic management of alternating gravimetric dosing phases and refilling phases
- Management of dosing process with digital Inputs/Outputs: Start, Stop, Refill, Alarms
4 Digital filtering levels allowing to always reach a quick and stable measurement in noisy environments.
Filter types: A/D converter low pass filter; Low pass filter with adjustable order and cut-off frequency; Notch filter with adjustable frequency band; Self-adaptive filter designed for static weighing
