The eNod4-D offers Defects control: Flow rate and dosing limits.
It offers high resolution, fast response and flexible communication

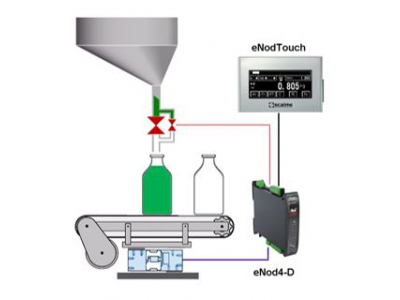

Dosing cycle by filling or unloading
- Dosing with 1, 2 or 3 feed rates with Digital Outputs
- Automatic inflight correction
- Emptying/ejection control (by filling) or loading control (by unloading)
- Defects control: Flow rate, dosing limits
4 Digital filtering levels allowing to always reach a quick and stable measurement in noisy environments
Filter types: A/D converter low pass filter; Low pass filter with adjustable order and cut-off frequency; Notch filter with adjustable frequency band; Self-adaptive filter designed for static weighing
Specification
- Capacity: 1 channel
- Layout: DIN rail
- Accuracy Class: 0.005%
- Internal Resolution: 24 bits
- Formatted resolution: +/- 500,000 PTS
- High speed measurement 1600 meas/sec
- CANopen
Interface
- RS485, USB, CANbus
- 2 I/4 O
- 4I/4I, 1 Analog output 0-10V; 4-20ma (optional)
Similar Products: eNod4-C, eNod4-T, eNod4-B, eNod4-F
