The CS55 has been redesigned for more Force and more Speed than the existing CS50. It has the same bolt pattern as the previous CS50, the new CS80 and the existing MS100.
It can move up to 200mm per second, with stroke ranges from 100 to 500mm

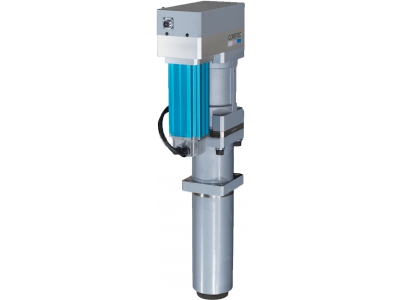

CS55
55 kN (5.5 Ton) Assembly Servo Press
Coretec
- Maximum Force Range, 55 kN (5.5 Ton)
- Stroke ranges available – 100mm, 200mm & 350mm
- Maximum actuator speed of 200 mm/sec.
- Cyclic loading up to 45kN without damage
- Special Stroke Range of 500mm
Details
Specifications
Max Force
55 kN
Max Speed
200 mm/s
Stroke
100 mm
200 mm
350 mm
400 mm
500 mm
200 mm
350 mm
400 mm
500 mm
Interface
Digital I/O
ProfiNet
DeviceNet
EthernetIP
CC-Link
ProfiNet
DeviceNet
EthernetIP
CC-Link
Models
CS55-100BK
55kN Servo Press with 100 mm stroke, with Brake
CS55-200BK
55kN Servo Press with 200 mm stroke, with Brake
CS55-350BK
55kN Servo Press with 350 mm stroke, with Brake
CS55-400BK
55kN Servo Press with 400 mm stroke, built to order, with Brake
Accessories
CS50, CS55 & CS80 Bellows
Rubber Bellows for CS50-100, CS50-200, CS50-350, CS55-100, CS55-200, CS55-350, CS80-100, CS80-200 & CS80-350 Tools
