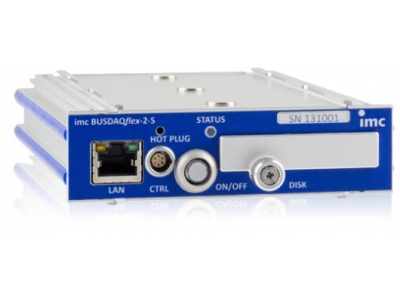

The imc BUSDAQflex is a series of data loggers for CAN, CAN FD, LIN, ARINC, FlexRay, XCPoE, MVB and
EtherCAT. The basic standard configuration of 2 CAN nodes can be expanded to up to 12 nodes in the
larger device models for various field buses and vehicle buses. Along with recording of raw data streams
and log channels, live decoding of individual channels is provided and complex protocols are supported,
such as CCP, KWP2000, XCP, OBD2, UDS, DiagOnCan, TP2.0, GMLAN
The BUSDAQflex devices work Autarkic and autonomously (without PC) and are rated for operation in
extended temperature range (-40 to +85°C), making them ideal for mobile applications. The BUSDAQflex
series has very low power consumption and thanks to built-in UPS (uninterruptible power supply)
ensures complete data integrity even in case of power failure outages. As a CAN or LIN-bus logger,
imc BUSDAQflex supports a signal or bus traffic controlled Sleep-mode (Wake-on-CAN) with a start-up
time of only 200 ms and is thus perfectly suited for vehicle fleet testing.
Recorded data is stored in the device on a removable storage media (in particular Flash) and can
already be live pre-processed, analyzed and evaluated by means of an on board processing platform
(imc Online FAMOS) - which even holds for autonomous stand alone operation. This allows e.g. threshold
monitoring, min./max. values, digital filters, spectral analysis, order tracking, classification, and more.
imc BUSDAQ records measurement data and status information of any type of bus subscribers, such as

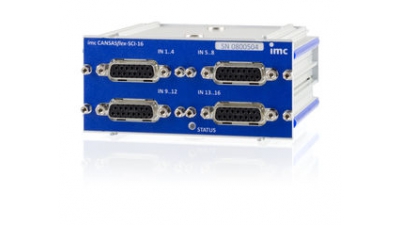

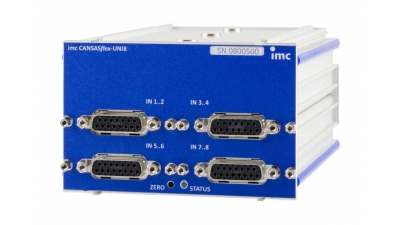

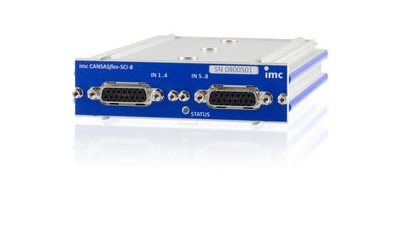

ECUs, sensors and CAN-based measurement amplifiers (e.g. imc CANSAS). In particular, modules of the
imc CANSASflex series (CANFX) can be directly docked, creating a very compact measurement system.
The tool-free click mechanism connects a data logger and digitizing measurement modules both
mechanically and electrically and requires no additional connecting cables.
imc BUSDAQ, like all imc measurement systems, is operated with the imc STUDIO software. The software
provides complete manual as well as automatic configuration of setup parameters, real-time
functions, triggering machines and storage modes. The measurement data display in curve windows and
comprehensive documentation via report generator are integral parts of the package.
