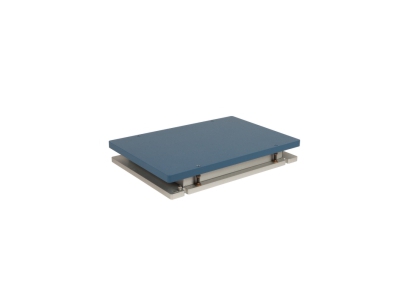

The BMS400600 (formerly BP400600-OP) is AMTI’s most popular mountable force plate for general biomechanics research and clinical assessment. It features a solid aluminum top, supports multi-axis load measurement, and is calibrated using AMTI’s patented OPTIMA process, which ensures superior measurement accuracy even near the edges. With a 400 × 600 mm footprint, this platform suits a wide range of activities—from human gait and balance to light sports applications. It integrates with the OPT-SC amplifier and supports both analog and USB digital outputs.
BMS400600
Multi-Axis Force Plate
Advanced Mechanical Technology Inc. (AMTI)
- Average COP accuracy of just a fraction of a millimeter (typically less than 0.5mm)
- Crosstalk values typically ±0.2% of applied load
- Dimensions: 400 mm × 600 mm
- Solid aluminum top plate for structural rigidity
- Compatible with OPT-SC amplifier
- Standard frequency performance for typical lab use
- Fx, Fy, Fz + Mx, My, Mz measurement
Details
Specifications
Full Scale (Fz)
1000 lbs
2000 lbs
4000 lbs
2000 lbs
4000 lbs
Fz Natural Frequency
370 Hz
400 Hz
420 Hz
400 Hz
420 Hz
Non-Linearity
± 0.2 % FS
Output
± 10 V DC
Dimensions
400 x 600 x 83 mm
Models
BMS400600 -1000
Fz Range: 1000 lbs, Fz Freq.: 370 Hz
BMS400600 -2000
Fz Range: 2000 lbs, Fz Freq.: 400 Hz
BMS400600 -4000
Fz Range: 4000 lbs, Fz Freq.: 830 Hz
BP400600 -OP-1000
Fz Range: 1000 lbs, Fz Freq.: 370 Hz
BP400600 -OP-2000
Fz Range: 2000 lbs, Fz Freq.: 400 Hz
