AMTI's AccuGait Optimized™ multi-axis force platform is a portable solution for quantifying human gait and balance. The AccuGait’s innovative, patented design is accurate, economical, and easy to use with AMTI's powerful NetForce / BioAnalysis software. The plug & play USB interface automatically synchronizes multiple platforms and eliminates external power supplies.
AMTI’s precision grid calibration technology optimizes each AccuGait Optimized force platform’s accuracy. By taking 1275 measurements in a grid pattern and using the points for calibration, enormous improvements in accuracy and reductions in crosstalk are realized – typically 5X better! The result: clinicians and researchers can perform better science from better data. In fact, force platforms are the very basis of clinical analysis and research involving gait, balance, sports performance, and biomechanics, so force platform accuracy matters.

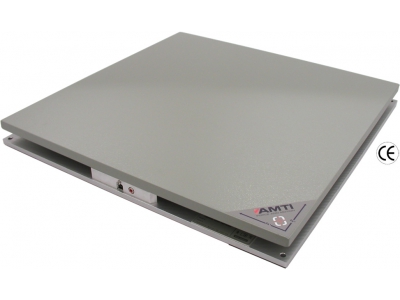

ACG-O
AccuGait Optimized Gait and Balance Platform
Advanced Mechanical Technology Inc. (AMTI)
- Portable gait and balance platform
- Plug and play USB interface automatically synchronizes up to 12 ACG-O platforms
- Optimized accuracy of 0.01%
- No mounting required
Details
Specifications
Full Scale (Fz)
300 lbs
Fz Natural Frequency
150 Hz
Dimensions
45.5 X 502 X 502 mm
Weight
25 lbs
Top Plate Material
Composite
Models
AccuGait-Optimized
The Portable Force Platform with eddy-current based Sensor Technology
ACG-O
